Heavy Duty Drawer Runner 508mm - 250kg - Full Extension

This product has been discontinued and has been replaced by an alternative here.

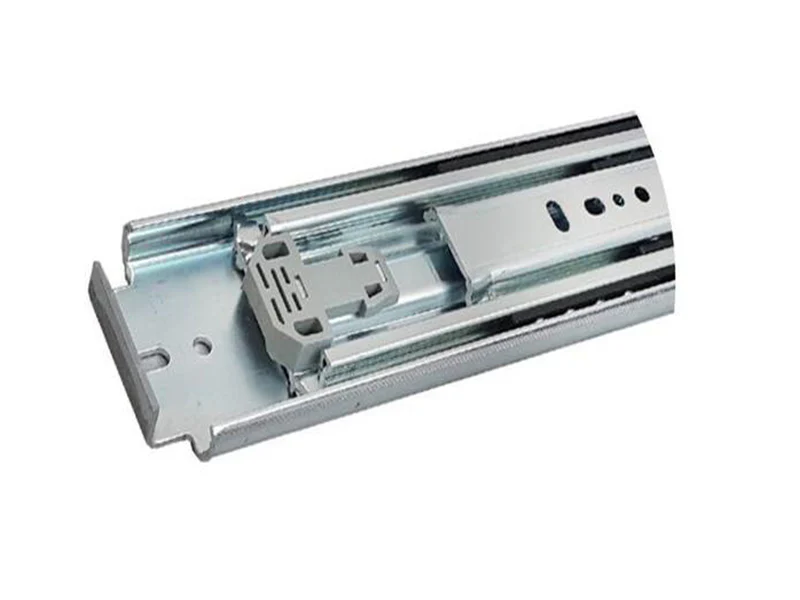

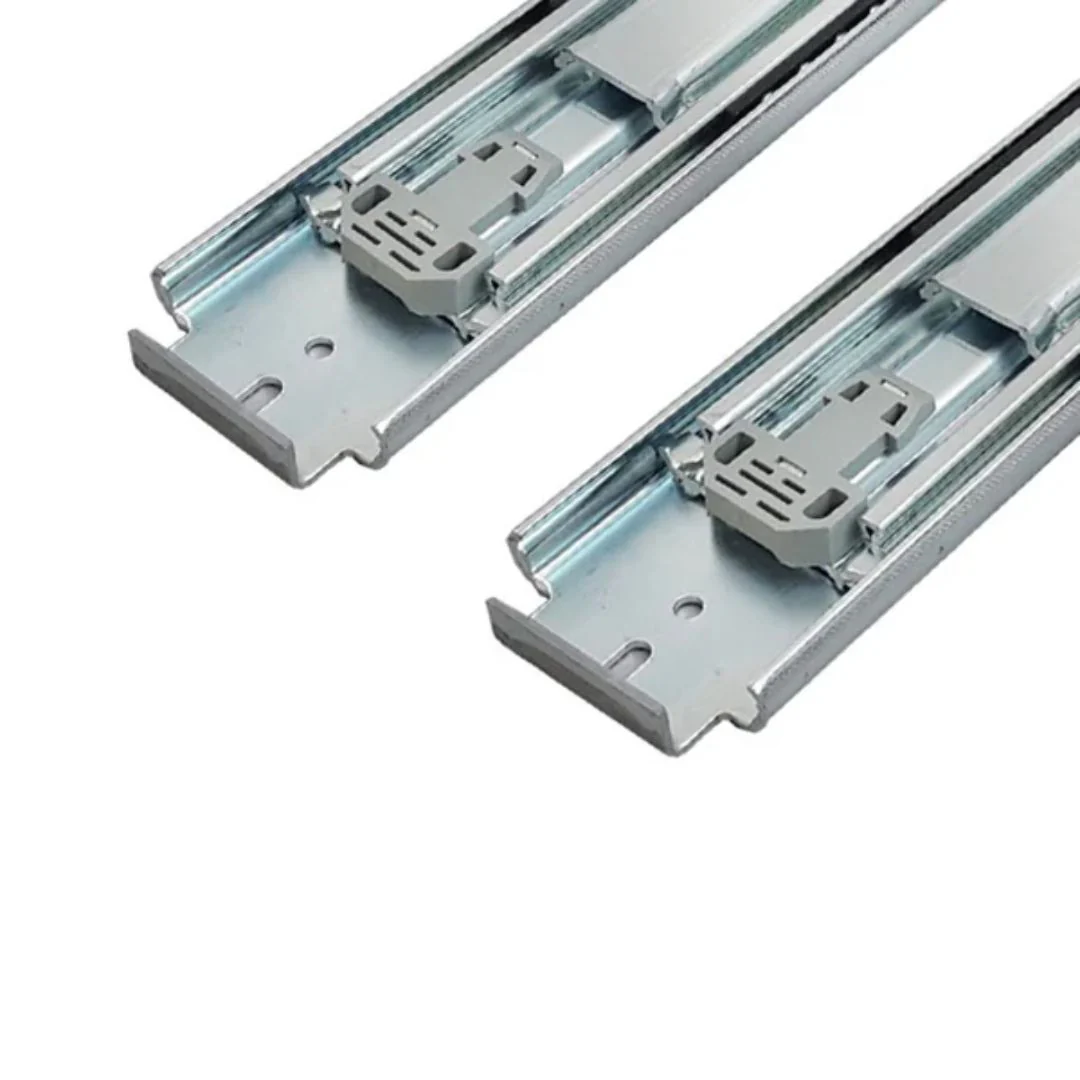

Our IntAfit 508mm (20") slide is a very competitive double extension cold rolled slide also known as a container slides with a load rating of 250kg based on 50,000 cycles.







Specifications



• Quick Release: No (due to load rating)
• Closed length:  508mm (20")
• Open length:  1016mm (40")

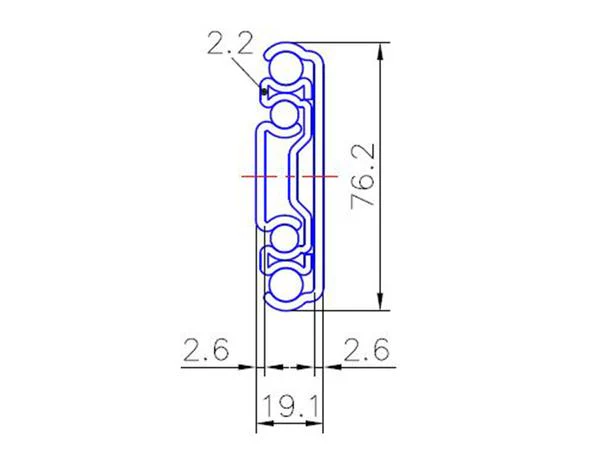

• Profile Height: 76mm
• Profile Width: 19.1mm
• Load Rating: 250kg (when fully extended)
• Range Sizes: 250 - 1524mm (10" - 60")
• Finish: Zinc Plated

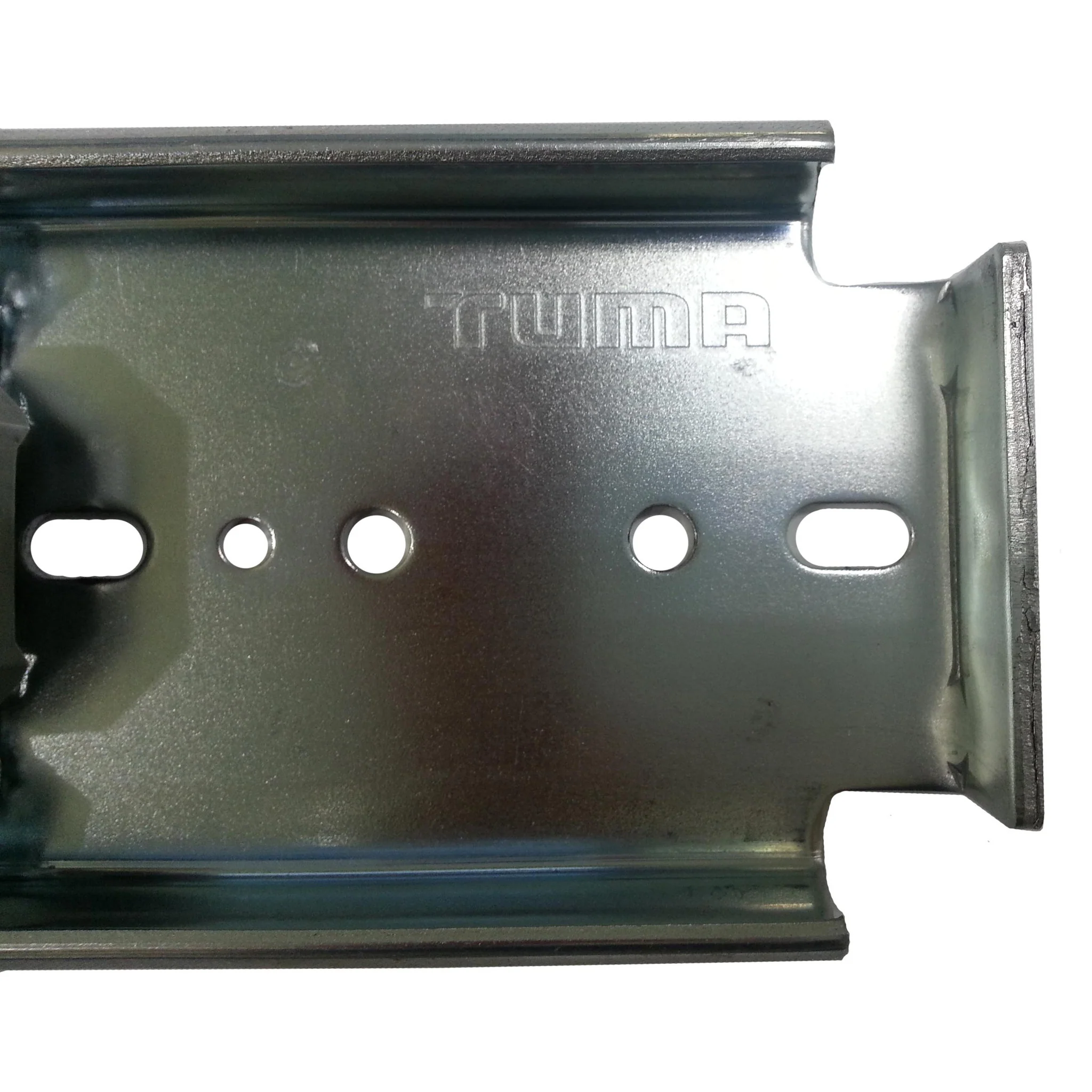

• Fixing Method: Screw or Rivet

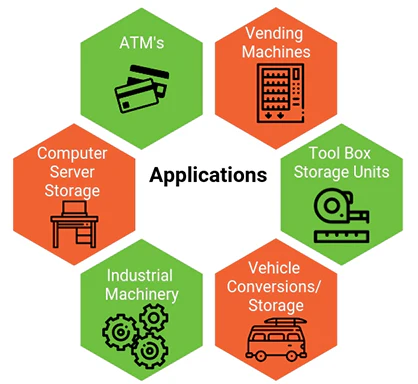

Applications

• ATM's
• Vending machines
• Tool box storage units
• Vehicle conversions
• Vehicle stowage
• Motorhomes
• Under stairs storage
• Computer server storage
• Industrial machinery



Fitting Information

This type of slide is designed to be used on its side, if used on its flat then the load rating must be reduced by 80%, should you wish to bottom or base mount this slide we recommend the options show below using mounting bracket sets...

Side Mounting Bracket Set For DS50020
Bottom Mounting Bracket Set For DS50020
Base Mounting Bracket Set For DS50020





Recommended Screws

Torq-Fix Pozi Countersunk Screw 4 x 16mm (8 x 5/8") Zinc

6.3mm x 13mm Pozi Countersunk (Pack Of 50)

M6 x 16mm Button Head Socket Screw and M6 Nylon Insert Nut

M6 x 16mm Button Head Socket Screw



Locking Handles

Front Mounted Locking Handle

Rear Mounted Locking Handle
